1020V2 | Type 1

Technical Specification

Overall dimensions ………………….. 1870 mm × 1085 mm
Mattress platform …………………… 1645 mm × 725 mm
Hi – Low ………………………………….. 940 mm – 650 mm
Side rail height ………………………… 410 mm
Back rest angle ……………………….. 0 – 83º
Knee rest angle ……………………….. 0 – 30º
Trend. / Reverse Trend ……………. ± 10º
Bed weight ……………………………… 133 kg
Safe working load ……………………. 150 kg
Casters (Central locking) ………………… 150 mm
Power input max ………………………….. 250 VA
Main power system ……………………… 220 V – 50 Hz, 24 V DC
Electrical current protection …………. Class I
Electrical shock protection …………… Type B
Operation mode ………………………… 10%, max.: 2 min./18 min.
IP rating ……………………………………. IP 66

Technical and Quality Assurance Standards
IEC 60601-1
IEC 60601-2-52
ISO 13485
ISO 14971

1020V2 | Type 1

Featuers

Head & Foot Boards

The high quality, seamless blow-molded bed ends of the model, 1020V2 are lightweight, durable, and easily washable and steam cleaned. In case of emergency, the caregiver can easily remove the bed ends by grasping the handholds and lifting up, offering better access to the patient’s head and upper body. Additionally, the bed end’s integrated steel fittings further, enforce the sturdiness of the structure and help to ensure smooth, reliable transportation.

Nurse Control Panel

The easy to use Attendant Control Panel (ACP) with illustrated push buttons located at the foot end of the bed provides all the required positions, including CPR, Trendelenburg, and Reverse Trendelenburg.

1020V2 | Type 1

Handset Control

The user-friendly handset control offers an array of illustrated push buttons, making adjusting the position of the bed simple. The pendant controller can be placed on both of the side rails for easy access.

Side Rails

This bed has a pair of durable, robust, and easy to clean folding parallel safety side rails that provide a protective height and length to ensure the patient’s safety. Side Rails Locking Mechanism Both safety side rails are equipped with an innovative and easy to use locking mechanism that allows the rails to be securely locked in an upright position to maximize the patient’s safety. By pulling upward on the locking handle, the caregiver can easily collapse the safety side rails.

Mattress Platforms

The trolley’s ABS mattress platforms boast many helpful features, like smooth surfaces, high durability, and a lightweight, easily transportable frame enabling quick and painless removal for cleaning and disinfection, including steam cleaning.”

Central Locking Casters

150 mm central locking casters run extremely smoothly; the quality that makes it significantly easy for the nursing staff to move the bed. In addition, the foot pedals allow effortless transition between the three modes of the central locking system: safe central locking (down), easy manoeuvring and positioning (middle), and fast directional movement (up) to provide a smooth and controlled single person transportation of the bed in medical centres.

Urine Bag Holder

Urine bag holder can be easily installed on either side of the bed.

1020V2 | Type 1

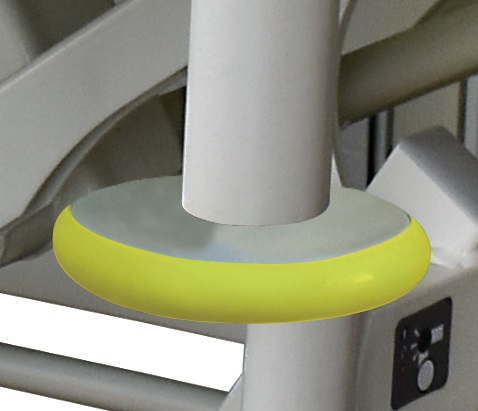

Bumpers

Innovative rotary bumpers which are located on four corners of 1020V2 can prevent to a large extent damages that may occur due to the unwanted collision of the bed to the surroundings during transportation.

Supplementary Side Rails

In addition to the high quality parallel side rails, the 1020V2 is also outfitted with a pair of rotating, supplementary side rails that enhance the safety and comfort of the patient.

1020V2 | Type 1

Positions

| Back rest |

| Knee rest |

| Fowler |

| High |

| Low |

| Foot Elevation |

| Revers Trendlenberg |

| Trendlenberg |
