1090V3 | Type 1

Technical Specification

Overall dimensions ………………………. 1955 mm x 922 mm
Mattress platform ……………………….. 1640 mm x 722 mm
Hi – Low………………………………………. 1075 mm – 670 mm
Safety side height ……………………….. 685 mm
Back rest angle …………………………… 0 – 75º
Knee rest angle ………………………….. 0 – 30º
Trend. / Reverse Trend. ………………. ± 15º
Bed weight ………………………………… 193 kg
Safe working load ……………………….. 150 kg
Casters (Central Locking) …………….. 150 mm
Power input max ……………………….. 250 VA
Main power system ………………….. 220 V – 50 Hz, 24 V DC
Electrical current protection ………. Class I
Electrical shock protection …………. Type B
Operation mode ……………………….. 10%, max: 2 min/18 min
IP rating …………………………………… IP 66

Technical and Quality Assurance Standards
IEC 60601 – 1
IEC 60601-2-52
ISO 13485
ISO 14971

1090V3 | Type 1

Featuers

Head & Foot Boards

The transparent bed ends provide a pleasant and joyful opportunity for the children to interact with their companions, caregivers, and others in the room during the treatment period. The seamless blow-moulded bed ends of 1090V3 are lightweight, durable, and easy to clean. Due to the smooth surfaces and high quality, the bed ends are compatible with steam cleaning.

Bed Ends Removal
Both bed ends are equipped with secure locking mechanisms that are simple to use. These locking mechanisms prevent unwanted bed ends removal or unsupervised bed exit. In order to have better access to the patient’s head or foot, the caregiver can easily remove the bed ends by unlocking the mechanism and then grasping the handholds and lifting them up in two simple steps.

1090V3 | Type 1

Safety Sides

The four-piece safety sides with transparent windows complete the design concept of the bed ends. Their unique design follows all safety standards. These safety sides cover the whole length of the bed, preventing children from falling or exiting the bed without supervision. Each safety side has a single step retraction mechanism which allows easy access to the patient.

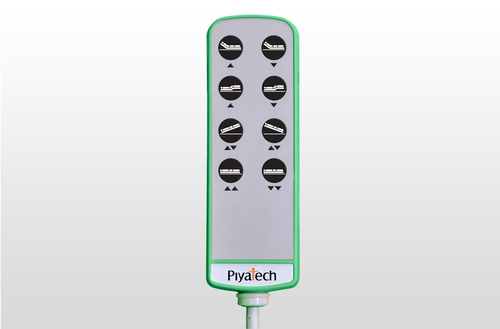

Pendant Controls

User-friendly handset control with illustrative schematics makes it simple and easy for the caregiver to adjust the bed with different positions. The pendant controller can be placed on both safety sides for easy access.

Casters

150 mm central locking casters run extremely smoothly; the quality that makes it significantly easy for the nursing staff to move the bed. In addition, the foot pedals allow an effortless transition between the three modes of the central locking system: safe central locking (down), easy manoeuvring and positioning (middle), and fast directional movement (up) to provide a smooth and controlled single person transportation of the bed in medical centres.

Actuators

All positions of this bed are achieved by powerful, reliable, and low noise actuators. As the actuators have IP66 rating, they are protected against ingression of dust and water. This prominent feature of actuators makes it easy to clean and disinfect the bed in the medical centers regularly.

Bumpers

Rotary bumpers that are located on four corners of the bed can prevent to a large extent the damages that may occur due to unwanted collision of the bed to the surroundings during transportation.

1090V3 | Type 1

Urine Bag Holder

Urine bag holders can be easily installed on
either side of the bed in one step.

Mattress Platforms

The ABS mattress platforms of this bed have some remarkable features such as smooth surfaces, high durability, and easy to remove for cleaning and disinfection. Plus, the mattress platforms are compatible for steam cleaning.

1090V3 | Type 1

Positions

| Back rest |

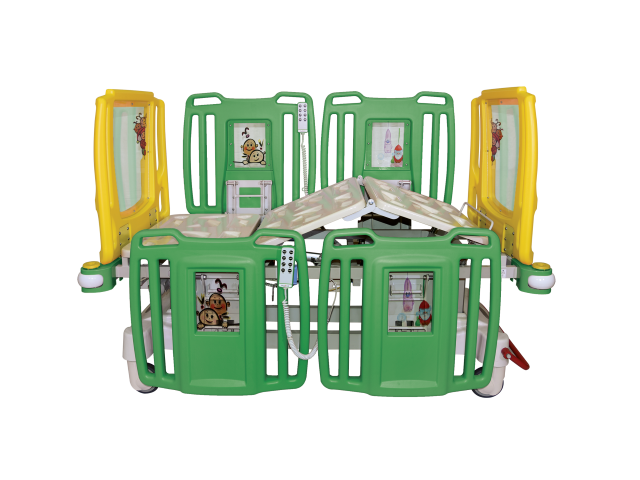

| Knee rest |

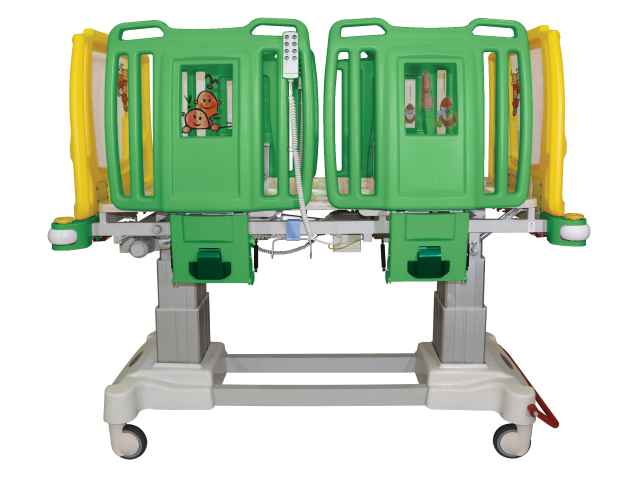

| High |

| Low |

| Trend |

| Revers trend |

| Cardiac chair |
