35000E

35000E

35000E

Technical Specification

Overall dimensions …………………………. 2250 mm × 1010 mm
Mattress platform ………………………….. 2000 mm × 810 mm
Hi – Low …………………………………………. 900 mm – 540 mm
Side rail height ………………………………. 410 mm
Back rest angle ………………………………. 0 – 85º
Knee rest angle ……………………………… 0 – 30º
Bed weight …………………………………… 135 kg
Safe working load ………………………….. 250 kg
Casters (Central locking) ………………… 150 mm
Power input max …………………………… 250 VA
Main power system ……………………….. 220V – 50 Hz, 24 V DC
Electrical current protection …………… Class I
Electrical shock protection …………….. Type B
Operation mode …………………………… 10%, max.: 2 min./18 min.
IP rating ………………………………………. IP 66

Technical and Quality Assurance Standards
IEC 60601-1
IEC 60601-2-52
ISO 13485
ISO 14971

35000E

Featuers

Head & Foot Boards

The seamless blow moulded bed ends of 35000E are lightweight, durable, and easy to clean. The bed ends are of high quality and compatible for steam cleaning. In order to have better access to the patient’s head in emergency cases, the caregiver can easily remove the bed ends by grasping the hand holds and lifting them up in one single step. Moreover, the bed ends have integrated steel fittings which make them extremely rigid; so, the nursing staff can move the bed by holding and pushing them without worries.

Nurse Control Panel

Easy to use Attendant Control Panel (ACP) with illustrative schematics located at the foot end of the bed provides all required positions. As the ACP has IP66 rating, it is resistant against dust and water.

35000E

Embedded Control Panel

User friendly embedded control panels are located on both safety sides of head section. Using the control keyboards on internal and external parts of safety sides, the patient and caregiver are able to adjust the back rest, knee rest, and height of the bed.

Actuators

All positions of this bed are achieved by powerful, reliable, and low noise actuators. As the actuators have IP66 rating, they are protected against ingression of dust and water. This prominent feature of actuators makes it easy to clean and disinfect the bed in the medical centres on a regular basis.

Mattress Platforms

The ABS mattress platforms of this bed are produced by injection molding method. These platforms have some remarkable features such as smooth surfaces, high durability, and easy to remove for cleaning and disinfection. Plus, the mattress platforms are compatible

Neutralizing Springs

The application of springs in the mechanism neutralizes the imposed pressure on actuators and consequently enhances their performance and durability.

Central Locking Casters

The 150 mm central locking casters move smoothly, ensuring quick and easy transport for the nursing staff. Additionally, the foot pedals allow for an effortless transition between the three modes of the central locking system: safe central locking (down), easy manoeuvring and positioning (middle), and fast directional movement (up), which provides a fluid and consistent movement making the bed easily transportable by a single person.

35000E

Urine Bag Holder

The bed is equipped with a urine bag holder which can be easily installed on either side of the bed.

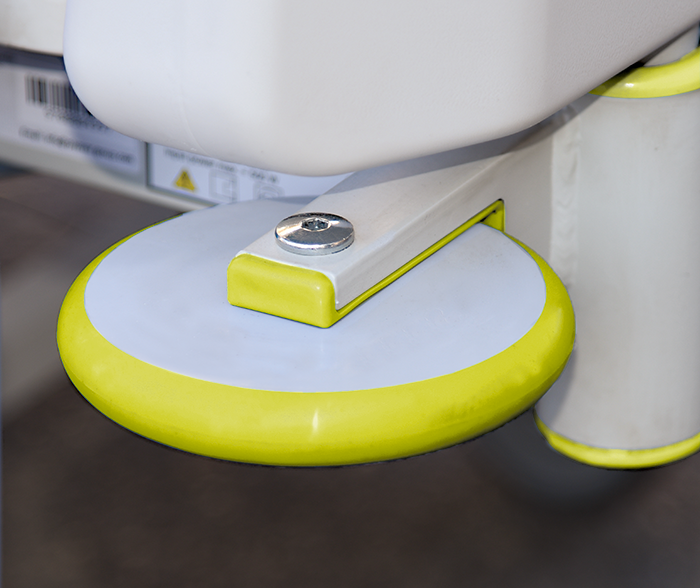

Bumpers

Innovative rotary bumpers which are located on four corners of 35000E can prevent to a large extent the damages that may occur due to unwanted collision of the bed to the surroundings during transportation.

35000E

Positions

| Backrest |

| Kneerest |

| Fowler |

| High |

| Low |

| Foot Elevation |
