4091 Type 2

4091 | Type 2

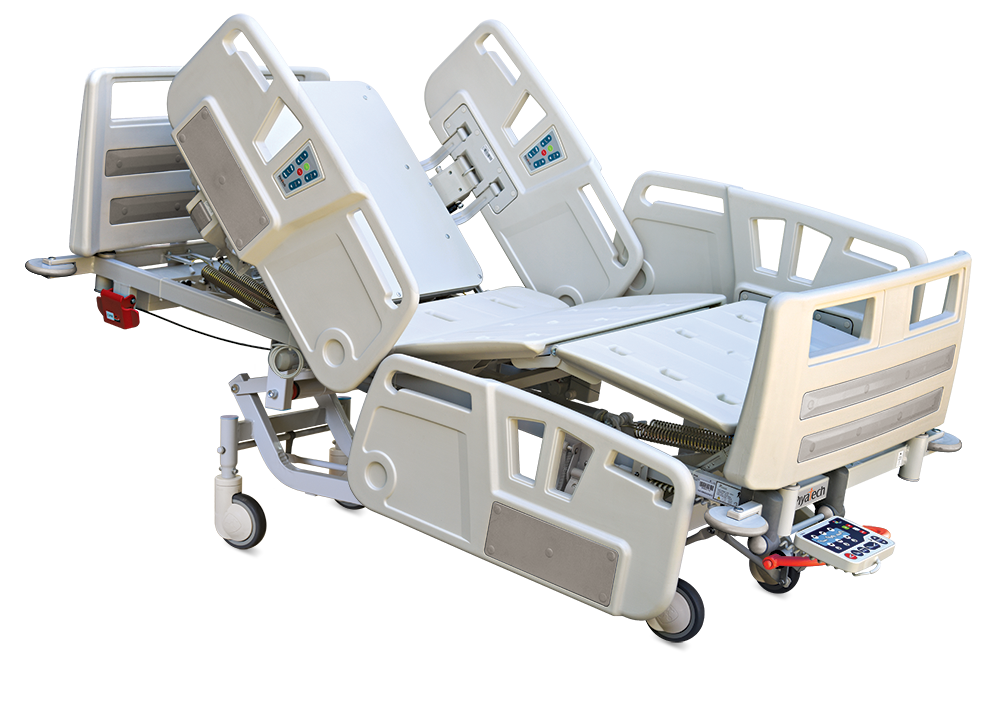

Technical Specification

Overall dimensions ………………………. 2260 mm x 1100 mm
Mattress platform ………………………… 2000 mm x 810-900 mm

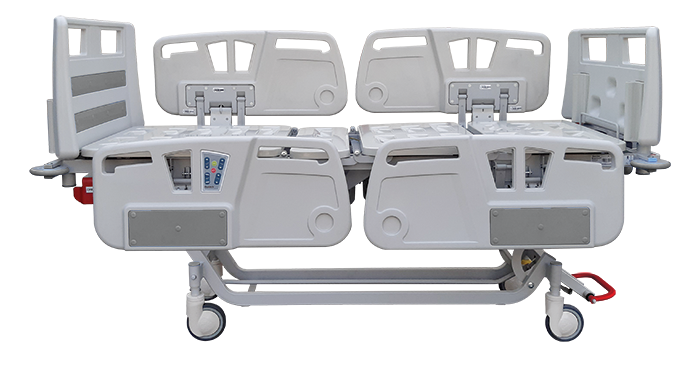

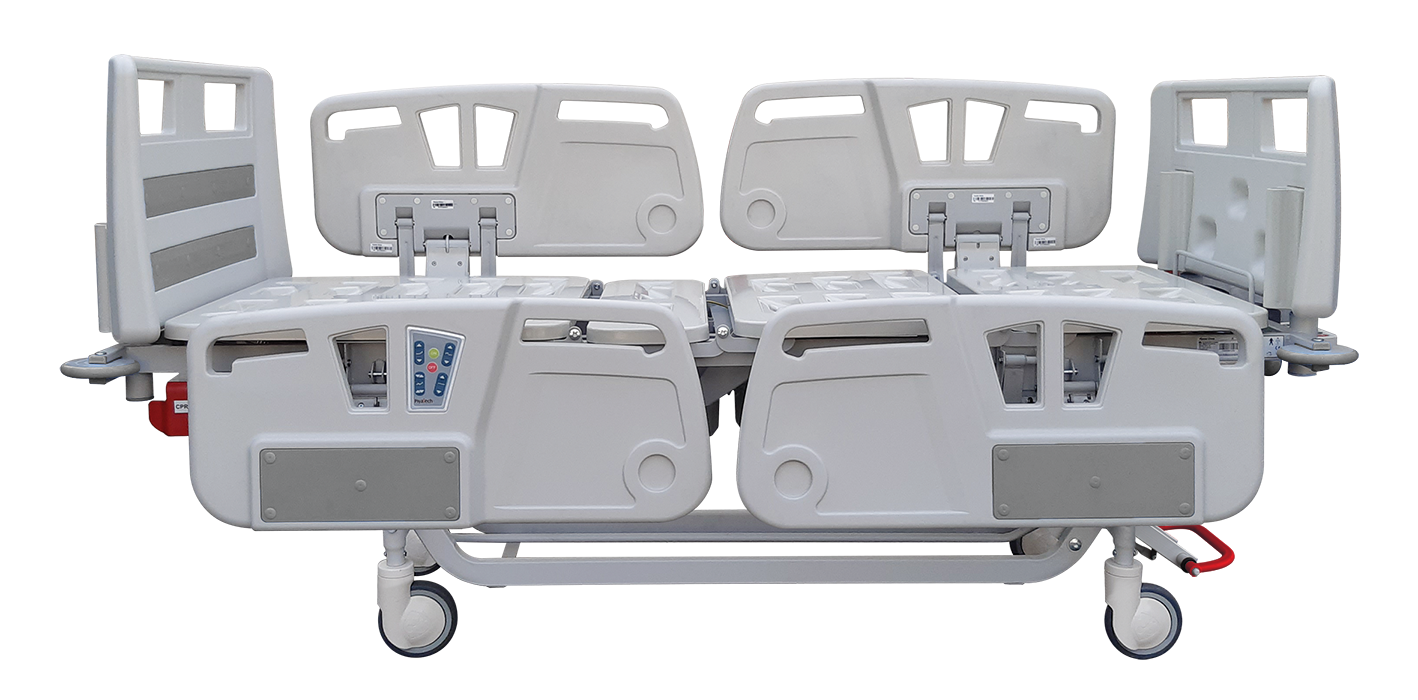

Hi – Low ………………………………………. 820 mm – 530 mm
Side rail height …………………………….. 435 mm

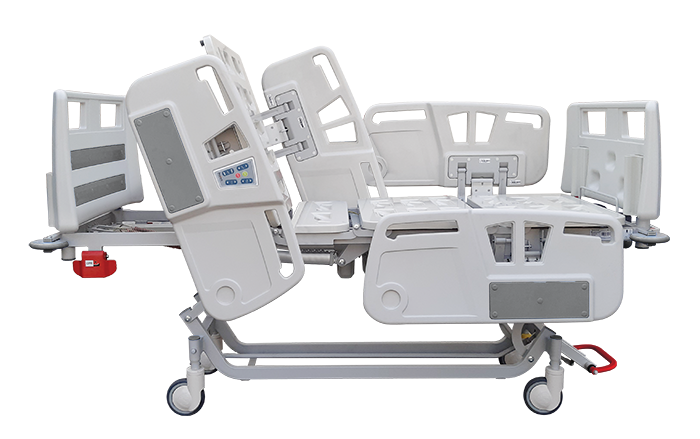

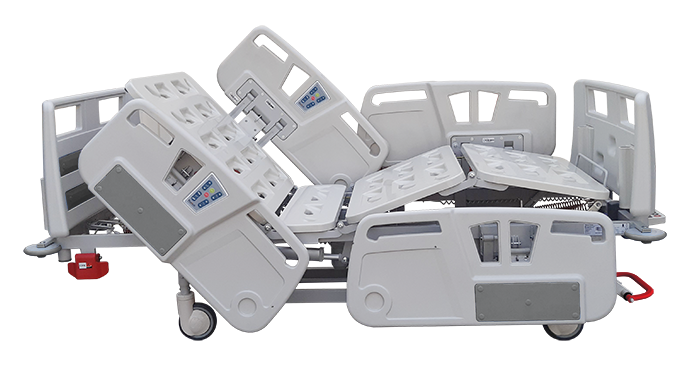

Back rest angle …………………………….. 0 – 85 °
Knee rest angle …………………………….. 0 – 30 °

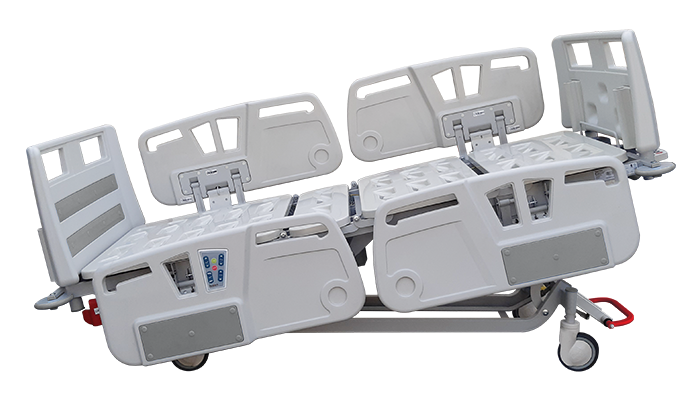

Trendelenburg & Reverse Trend ……. +11 °
Bed weight …………………………………… 151 kg
Safe working load …………………………. 250 kg
Casters ………………………………………… 150 mm
Power input max ………………………….. 250 VA
Main power system ………………………. 220V – 50 Hz, 24 V DC
Electrical current protection …………. Class I
Electrical shock protection …………… Type B
Operation mode ………………………….. 10%, max.: 2 min./18 min
IP rating ……………………………………… IP 66

Technical and Quality Assurance Standards
IEC 60601-1
IEC 60601-2-52
ISO 13485
ISO 14971

4091 | Type 2

Featuers

Actuators

The bed smoothly transitions between various
positions thanks to its robust, dependable,
and low-noise actuators. Rated IP66, these
actuators are protected against dust and
water, making cleaning and disinfection
effortless in medical centers. This feature
ensures the bed can be consistently
maintained to meet strict hygiene standards.

Nurse
Control Panel

The user-friendly Attendant Control
Panel (ACP) at the foot end of the
bed features illustrated push buttons
for all essential positions, including
CPR, Trendelenburg, and Reverse Trend.
To minimize the risk of patient falls or
unauthorized adjustments, the ACP
includes a nurse lock function. Its IP66
rating ensures excellent protection
against dust and water.

4091 | Type 2

Embedded
Control Panel

User-friendly embedded control panels are positioned
on both safety sides of the head section. These control
keyboards, located on the internal and external parts
of the safety sides, allow both patients and caregivers
to adjust the backrest, knee rest, and bed height, ensuring
optimal comfort and convenience.

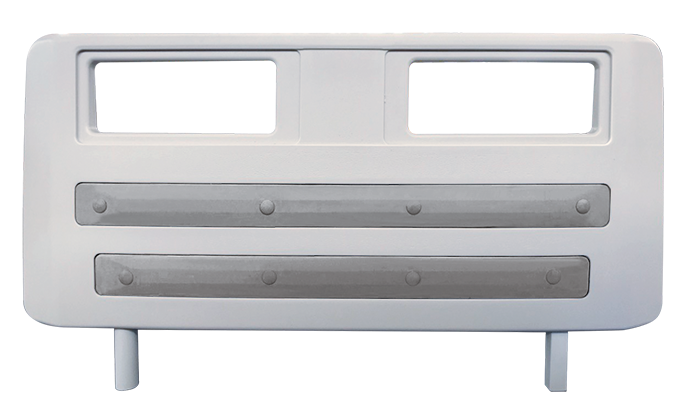

Bed Ends

The blow-molded bed ends are lightweight,
durable, and easy to clean. They are of high
quality and compatible with steam cleaning.
In emergency situations, caregivers can quickly access the patient’s head by removing the bed ends with a simple lift using the handholds. Additionally, the bed ends feature integrated steel fittings, which provide exceptional strength, allowing nursing staff to move the bed by holding and pushing the ends with confidence.

Mattress Platforms

The injection-molded and blow-molded
mattress platforms offer smooth surfaces,
high durability, and easy removal for efficient
cleaning and disinfection. They are also
compatible with steam cleaning, ensuring
thorough sanitation.

Safety Sides

The 4091 bed features retractable, overlapping
safety sides with embedded control keyboards
for both patients and caregivers. Designed to
provide optimal protection in height and length,
these sides adhere to the highest safety standards to prevent patient falls and entrapment.

Central Locking Casters

The 150 mm anti-static central locking casters provide exceptionally smooth operation, making it easy for nursing staff to move the bed. The foot pedals facilitate effortless transitions between the three modes of the central locking system, enabling smooth and controlled
single-person transportation within medical centers.
–    Safe Central Locking (Down)
–    Easy Maneuvering and Positioning (Middle)
–    Fast Directional Movement (Up)

4091 | Type 2

CPR Mechanism

Two CPR quick release handles are located on either side of the bed for easy and fast access in the case of an emergency. The manual quick-release mechanism operates independently from the electrical CPR of the bed that makes it fully operational in spite of a power outage.

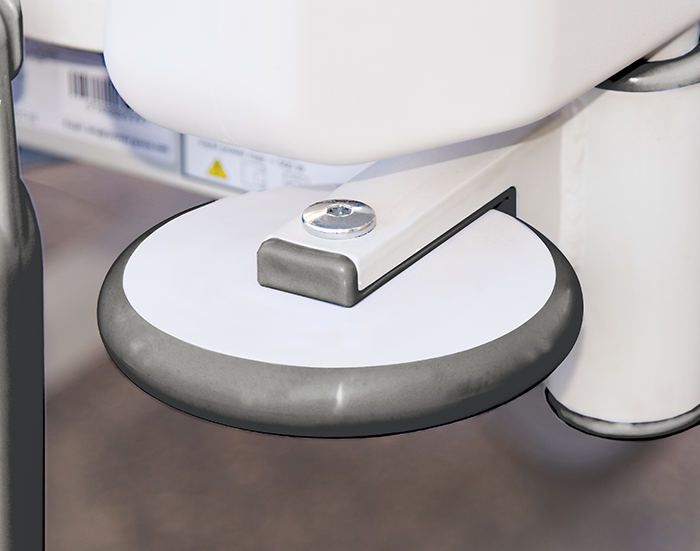

Bumpers

Innovative rotary bumpers which are located on
four corners of beds can prevent to a large extent the damages that may cause collision of the bed to the surroundings during transportation.

Neutralizing Springs

By incorporating springs into the mechanism, the applied pressure on actuators is effectively neutralized, resulting in improved performance and durability.
